Vali VPWS 450, 500
VALI VPWS 450 / 500

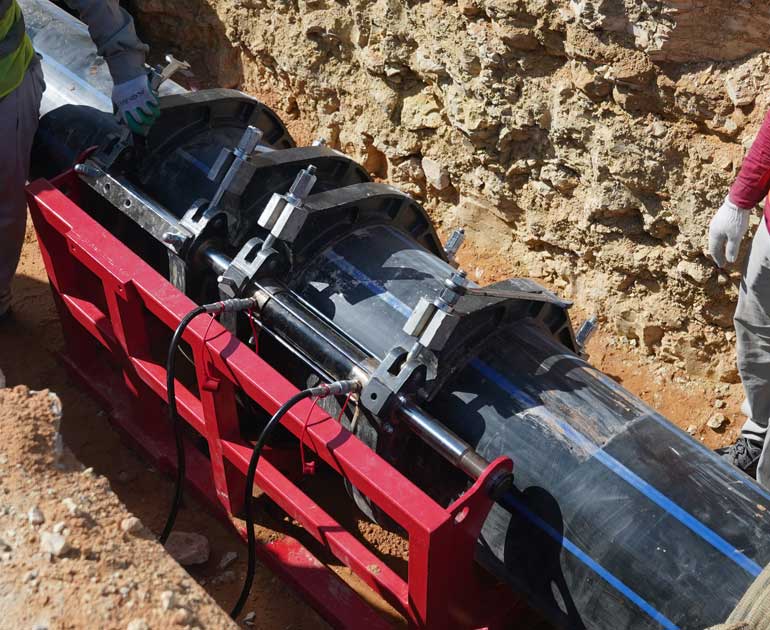

Ideal for Butt welding of PE, PP, PVDF pipes and fittings. Compact design, these machine make the fusion process easy and guarantee performance every day.
| MODEL | VPWS 450 | VPWS 500 |
|---|---|---|
|
Pipe welding ranges (mm) |
200, 225, 250, 280, 315, 355, 400, 450 |
200, 225, 250, 280, 315, 355, 400, 450, 500 |
|
Working voltage |
380V, 3P, 50/60 Hz |
380V, 3P, 50/60 Hz |
|
Heating Plate Max. Temp |
270 °C |
270 °C |
|
Deviation in heating plate surface temperature |
<±7 °C |
<±7 °C |
|
Pressure adjustment ranges |
0-8 Mpa |
0-8 Mpa |
|
Heating plate power |
5.38kw |
6.5kw |
|
Planning tool power |
1.5kw |
1.5kw |
|
Hydraulic unit power |
1.5kw |
1.5kw |
|
Total power |
7.28kw |
8.4kw |
|
Optional |
Stub Flange Adapter, Winch kit, Compact trolley |
