Vali VPWS 160, 250, 315, 355
VALI VPWS 160 / 250 / 315 / 355

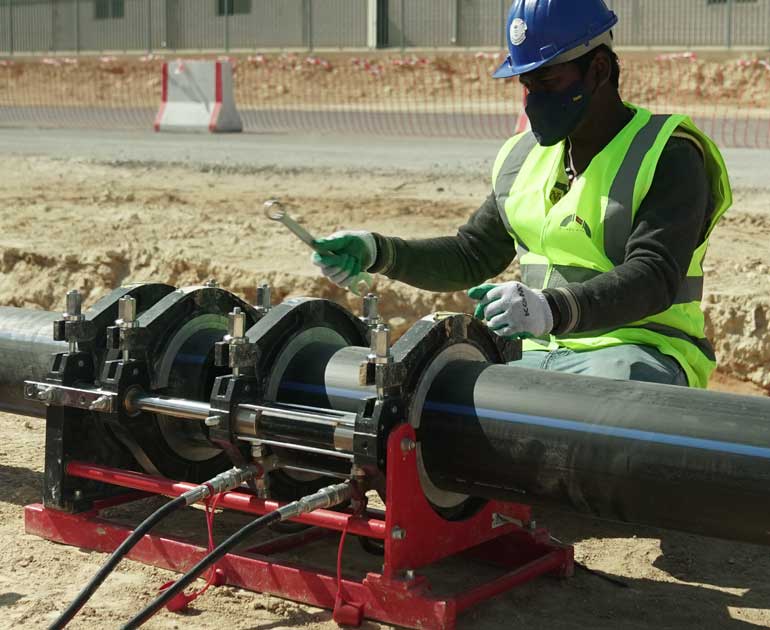

Ideal for Butt welding of PE, PP, PVDF pipes and fittings. Compact design, these machine make the fusion process easy and guarantee performance every day.
- Ergonomic design for basic frame with hydraulic unit, planning tool and heating plate.
- Suitable for sanitary installation, drain pipe installation, gas pipes, and other fluids.
- PTFE coated heating plate, adjustable temperature knobs.
- Electronic count down timer for heating and cooling time.
- Low starting pressure ensures reliable welding quality of small pipes
| MODEL | VPWS 160 | VPWS 250 | VPWS 315 | VPWS 355 |
|---|---|---|---|---|
|
Pipe welding ranges (mm) |
63, 75, 90, 110, 125, 140, 160 |
63, 75, 90, 110, 125, 140, 160, 180, 200, 225, 250 |
90, 110, 125, 140, 160, 180, 200, 225, 250, 280, 315 |
90, 110, 125, 140, 160, 180, 200, 225, 250, 280, 315, 355 |
|
Working voltage |
220V, 50/60 Hz |
220V, 50/60 Hz |
220V, 50/60 Hz |
220V, 50/60 Hz |
|
Heating Plate Max. Temp |
270 °C |
270 °C |
270 °C |
270 °C |
|
Deviation in heating plate surface temperature |
<±5 °C |
<±5 °C |
<±5 °C |
<±5 °C |
|
Pressure adjustment ranges |
0-7 Mpa |
0-7 Mpa |
0-7 Mpa |
0-7 Mpa |
|
Heating plate power |
1kw |
2kw |
3kw |
4kw |
|
Planning tool power |
0.7kw |
1.1kw |
1.1kw |
1.1kw |
|
Hydraulic unit power |
0.75kw |
0.75kw |
0.75kw |
0.75kw |
|
Total power |
2.45kw |
3.85kw |
4.85kw |
5.85kw |
|
Optional |
Stub Flange Adapter |
