Electro Fusion
ELECTRO FUSION

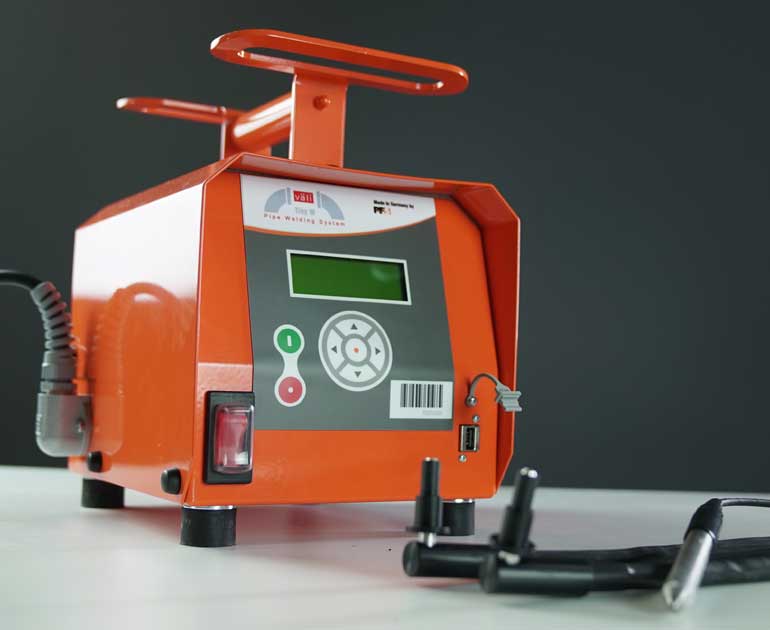

The electro fusion control units of type Tiny Data MF USB (Bluetooth) and poly control plus USB (Bluetooth) V2.0 are solely meant for the welding of thermoplastic pipes (e.g. mode of PE-HD, PE80, PE100, or PP) when used with electro fusion fittings that have an input voltage of less than 48 V. These devices are conforming to the standards DVS 2208-1 and ISO 12176-2, of which the applicable standards for the electro fusion fittings to be used are derived from
| MODEL | VPWS 630 | VPWS 800 | VPWS 1000 |
|---|---|---|---|
|
Pipe welding ranges (mm) |
315, 355, 400, 450, 500, 560, 630 |
450, 500, 560, 630, 710, 800 |
630, 710, 800, 900, 1000 |
|
Working voltage |
380V, 3P, 50/60 Hz |
380V, 3P, 50/60 Hz |
380V, 3P, 50/60 Hz |
|
Heating Plate Max. Temp |
270 °C |
270 °C |
270 °C |
|
Deviation in heating plate surface temperature |
<±7 °C |
<±7 °C |
<±7 °C |
|
Pressure adjustment ranges |
0-8 Mpa |
0-16 Mpa |
0-16 Mpa |
|
Heating plate power |
9.35kw |
12.5kw |
17.5kw |
|
Planning tool power |
1.5kw |
2.2kw |
3kw |
|
Hydraulic unit power |
1.5kw |
3kw |
3kw |
|
Crane power |
1.1kw |
1.1kw |
1.1kw |
|
Total power |
12.35kw |
18.7kw |
24.5kw |
|
Weight |
780 kg |
1360 kg |
2600 kg |
|
Optional |
Stub Flange Adapter, Compact trolley, Data logger |
